Short Description
N8614F
Raised or Flattened
Flattened
Material
Pre-galvanised Steel
Pitch LWP
8
Pitch SWP
5.44
Aperture Long Way
5
Aperture Short Way
3.2
Strand Thickness
0.7
Strand Thickness AF
0.7
Strand Width
1.05
Strand Width AF
1.2
Shape
Experf
Area
61
Sheet Size Long Way
1250
Sheet Size Short Way
2500
Write Your Own Review
You're reviewing:N8614F - Small, Expanded Metal, Flattened, Pre-galvanised Steel Mesh
Your Rating
N8614F

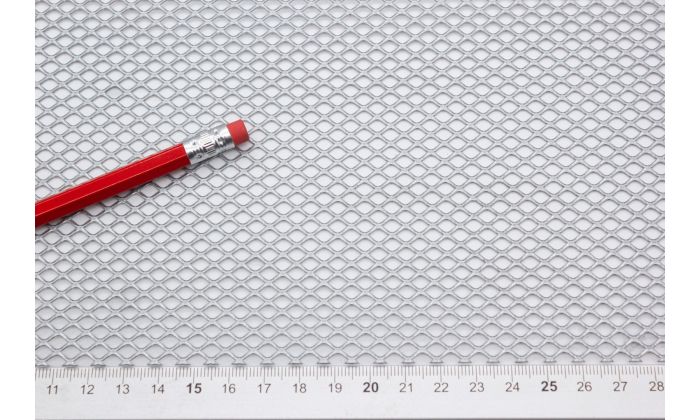

N8614F - Small, Expanded Metal, Flattened, Pre-galvanised Steel Mesh

£37.42 £31.18
SKU
P08614-202-1250X2500-001-00

Small, Expanded Metal, Flattened, Pre-galvanised Steel Mesh

Also known as...

P08614, R8

Unlike the perforated metal manufacturing process where holes are punched and the waste is costly, our Experf production method involves slitting and stretching the material to create holes, rather than punching them out. This provides a high quality product with cost savings of more than 50 per cent versus perforated metal products. Experf can be interchanged for perforated equivalents in multiple applications, giving comparable aesthetics, strength, open area, acoustic and filtration properties.

Mesh Product Guide
(Size: 3.2 MB)
Qty
-
+

100% Payment Secure
Stripe Level 1, certified highest accreditation security.

Save money on higher volumes.

Discounts are available on quantities of 5, 10, 25 and 50 sheets. Contact us for more details.
